# 03-Functional\_Testing

## LCD

**Hardware Connection**\
![1732673112060](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/1732673112060.png)

**Display Test**

```shell
fbinit
echo 8 > /sys/devices/virtual/disp/disp/attr/colorbar
```

![image-20241127100853924](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127100853924.png)

**Touch Test**

```shell
ts_test
```

Click the "Draw" button to display touch trajectories:\
![image-20241127101444185](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127101444185.png)

**Backlight Control**

```shell
/usr/bin/lcd_bright_test 2 255  # Max brightness
/usr/bin/lcd_bright_test 2 0    # Min brightness
```

## Headphone

```shell
tinymix set "Headphone Switch" 1
aplay -Dhw:audiocodec -vv /etc/sample-15s.wav
```

![image-20241127110956315](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127110956315.png)

## Speaker

![1730786055916](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/1730786055916.png)

**Play Audio**

```shell
aplay -Dhw:audiocodec -vv /etc/sample-15s.wav
```

## Microphone

**Record & Playback**

```shell
arecord -Dhw:audiocodec -f S24_LE -r 16000 -vvv test.wav
aplay -Dhw:audiocodec -vv test.wav
```

## WiFi

**Configure WiFi**

```shell
# Modify WiFi name and password
vi /etc/wpa_supplicant.conf
cat /etc/wpa_supplicant.conf

ctrl_interface=/var/run/wpa_supplicant
ap_scan=1
update_config=1

network={
    ssid="wifi_oranth_2.4"
    psk="123456789"
    key_mgmt=WPA-PSK
}

# Connect to WiFi
wpa_supplicant -D nl80211 -i wlan0 -c /etc/wpa_supplicant.conf -B
udhcpc -i wlan0
```

![image-20241127182924328](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127182924328.png)

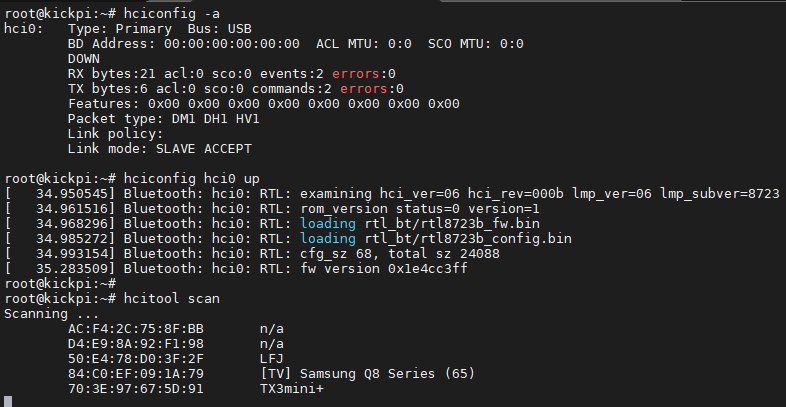

## Bluetooth

```
hciconfig -a
hciconfig hci0 up
hcitool scan
```

![image-20241213100311376](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241213100311376.png)

## RTC

**Power-off Time Retention Test**

1. Set system time and sync to RTC:

```
date -s "2024-11-06 10:30:00" && hwclock -w -f /dev/rtc1
```

2. Power off the board, wait, then power it back on.
3. Verify time consistency:

```
date && hwclock -f /dev/rtc1
```

## 4G Module

**Check Connectivity**

```
lsusb                     # Verify USB module detection
ls /dev/ttyUSB*           # Check serial port nodes
pppd call quectel-ppp &   # Dial-up
ping www.baidu.com        # Test network

# Troubleshooting
ps -ef | grep pppd        # Find process ID
kill -9 <PID>             # Terminate process
pppd call quectel-ppp &   # Redial
```

## SD Card

**Speed Test**\
Insert a formatted SD card (auto-mounted):

```
time dd if=/dev/zero of=/dev/mmcblk1 bs=1M count=300 oflag=direct
```

![image-20241127183750626](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127183750626.png)

## USB

**Speed Test**\
Insert a formatted USB drive (auto-mounted):

```
time dd if=/dev/zero of=/dev/sda bs=1M count=300 oflag=direct
```

![image-20241127183922113](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127183922113.png)

## CAN Bus

**Loopback Test**

1. Connect CANL-to-CANL and CANH-to-CANH:\
   ![image-20240930140153264](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20240930140153264.png)
2. Initialize CAN interfaces:

```
# CAN0
ip link set can0 down
ip link set can0 type can bitrate 500000
ip link set can0 up

# CAN1
ip link set can1 down
ip link set can1 type can bitrate 500000
ip link set can1 up
```

3. Start testing (CAN0 receive, CAN1 transmit):

```
candump can0 &
cansend can1 123#DEADBEEF
```

![image-20241127184109190](http://tanzhtanzh.oss-cn-shenzhen.aliyuncs.com/img/image-20241127184109190.png)


---
