03-KICKPI-K1B_Hardware_Introduction
Main Controller Information

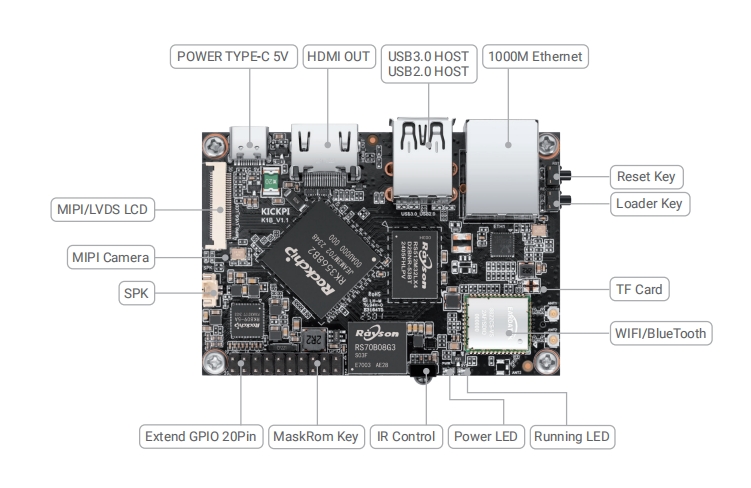

Development Board Information
Expansion Pins
Accessory List
Display
The display interfaces that the K1B main board can connect to are: one MIPI/LVDS interface (flip - type FPC interface) and an HDMI OUT interface (HDMI - A).
MIPI - DSI
The MIPI screens that the K1B is default - adapted to:
MIPI Panel Model
Diagonal Size
Resolution
AT101DS40I
10.1 - inch
800x1280
MX101BA1340
10.1 - inch
800x1280
MX080B2140
8.0 - inch
800x1280
F050008M01
5.0 - inch
720x1280
LVDS
The LVDS screens that the K1B is default - adapted to:
LVDS Panel Model
Diagonal Size
Resolution
GG070D1
7 - inch
1024x600
MX070IBC
7 - inch
1024x600
