02-KICKPI-K1_Hardware_Introduction

Main Controller Information

rk3568 Basic Information

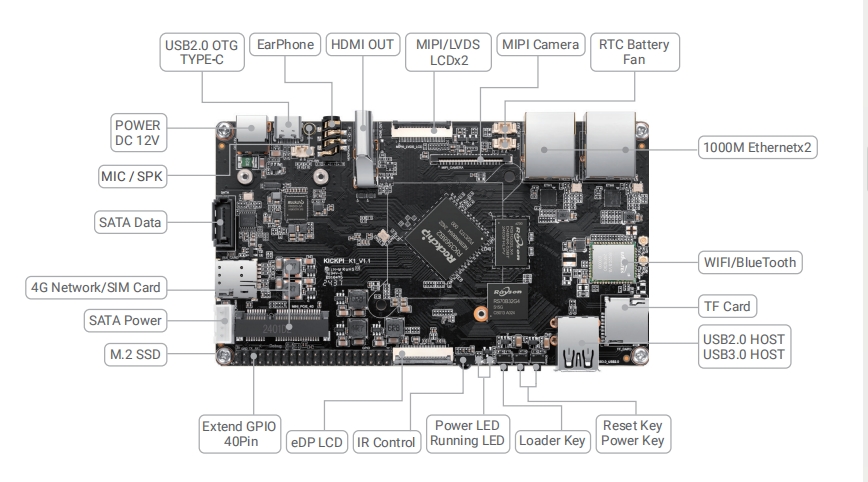

Development Board Information

image-20250222170321575

Expansion Pins

image-20250222170528749

Accessory List

Display

The display interfaces that the K1 mainboard can connect to are: two MIPI/LVDS interfaces (front - flip FPC interface, back - pull - out FPC interface), one eDP interface (flip FPC interface), and an HDMI OUT interface (HDMI - A).

• MIPI - DSI

The MIPI screens that K1 is default - adapted to

MIPI Panel Model	Diagonal Size	Resolution
AT101DS40I	10.1 - inch	800x1280
MX101BA1340	10.1 - inch	800x1280
MX080B2140	8.0 - inch	800x1280
F050008M01	5.0 - inch	720x1280

• LVDS

The LVDS screens that K1 is default - adapted to

LVDS Panel Model	Diagonal Size	Resolution
GG070D1	7 - inch	1024x600
MX070IBC	7 - inch	1024x600

• EDP

The EDP screens that K1 is default - adapted to

EDP Panel Model	Diagonal Size	Resolution
LQ156T3LW03	15.6 - inch	1920x1080
