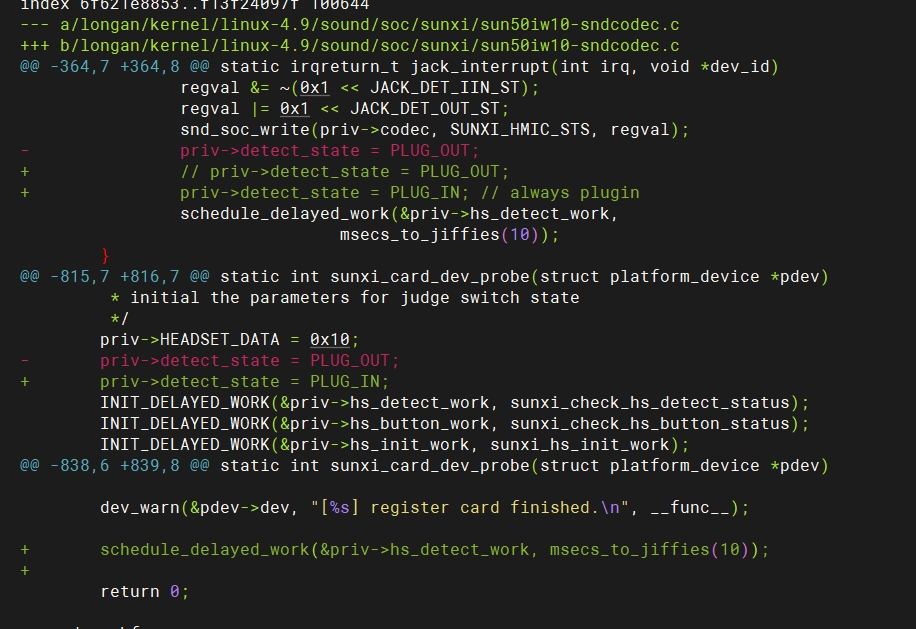

  • 1.安卓系统耳机一直是连接状态
  1. K5/K5C(A133)
  2. A133 中文文档
  3. 06-ANDROID系统定制

01-Android常用系统定制

01-Android常用系统定制

Android 环境

cd android
source build/envsetup.sh
lunch ceres_c3-userdebug

开发者模式

操作步骤:
Settings -> About tablet ->  点击 Build number -> 提示已经切换到开发者模式

开发者选项路径:
Settings -> System -> Developer options

APP 、文件编译不生效问题

android 为惰性编译,直接替换后编译,一些APP、文件不一定编译到镜像中

可以通过如下其中一种方式解决

  1. make installclean

  2. rm out/target/product/apollo-p2/xxx/xxx

  3. 编译的条件发生变化(比如文件名、APK名)

默认屏幕方向

修改默认显示方向

触控修改参考如下,注意选择对应屏幕的设备树文件

旋转功能

支持使用adb命令进行旋转

// 0
adb shell settings put system user_rotation 0

// 90°
adb shell settings put system user_rotation 1

// 180°
adb shell settings put system user_rotation 2

// 270°
adb shell settings put system user_rotation 3

开机LOGO

logo 替换路径

longan/device/config/chips/a133/configs/c3/android/bootlogo.bmp

图片格式 - 32bit

图片分辨率 - 小于实际屏幕分辨率

开机动画

默认替换

支持 bootanimation.mp4 以及 bootanimation.zip 两种文件格式的开机动画

两种文件同时存在播放 mp4 优先级比 zip 高 ,具体优先级见

frameworks/base/cmds/bootanimation/BootAnimation.cpp

公版动画路径

android/device/softwinner/ceres-c3/media/bootanimation.zip

修改拷贝路径

android/device/softwinner/ceres-c3/ceres_c3.mk

bootanimation.zip 格式

 PRODUCT_COPY_FILES += \
     $(LOCAL_PATH)/media/bootanimation.zip:system/media/bootanimation.zip

bootanimation.mp4 格式

 PRODUCT_COPY_FILES += \
     $(LOCAL_PATH)/media/bootanimation.mp4:system/media/bootanimation.mp4

mp4 方式烧录镜像后第一次启动的开机动画是原生Android,需要重启显示替换的开机动画

在线替换

$ adb root
$ adb remount
$ adb push $(bootanimation_path) /system/media/bootanimation.zip
$ adb reboot

bootanimation.zip 制作

文件结构

$ zipinfo android/device/softwinner/ceres-c3/media/bootanimation.zip
 part0/
 part0/0000.png
 part0/0001.png
 part0/0002.png
 ...
 part1
 part1/0013.png
 part1/0014.png
 part1/0015.png
 ...
 audio_conf.txt
 desc.txt

bootanimation.zip 包含 part0 part1 文件夹和 desc.txt 文件,part0 part1 等文件夹里面放的是动画拆分的图片,格式为 png。

desc.txt 配置文件

800 480 15
p 1 0 part0
p 0 0 part1

第一行

WIDTH HEIGHT FPS

WIDTH 800 图片的宽度

HEIGHT 480 图片的高度

FPS 15 帧数

第二、三行

TYPE COUNT PAUSE PATH

TYPE p 播放直到开机完成

COUNT 1 播放次数,0代表无线循环直到开机结束

PAUSE 0 part结束后暂停帧数

PATH part1 路径

最后一行需为空行

window 压缩打包zip

  1. 左键选中 part0、part1、desc.txt等文件;(保证part0、part1等文件位于压缩包根目录级别)

  2. 右键选择压缩,选择其他;

  3. 进行ZIP压缩,压缩标准需要选择 Store;

Linux 压缩打包zip

linux 压缩,指定压缩等级为最低等级stored,只归档不压缩

$ zip -0qry bootanimation.zip  *.txt part0/ part1/

注意压缩包下 part0 part1 txt 为同一级根目录

开机音乐

如需开机音乐,将开机音乐放入part0目录中,命名为Audio.wav。

在根目录加入audio_conf.txt,复制原有动画配置即可

桌面定制

源码路径

SDK$ ls android/packages/apps/Launcher3/

单编APK

SDK$ cd android/
SDK$ . build/envsetup.sh
SDK$ lunch ceres_c3-userdebug
SDK$ BUILD_NUMBER=ido-a133 m Launcher3QuickStepGo -j32

关闭搜索框

--- a/android/packages/apps/Launcher3/src/com/android/launcher3/config/BaseFlags.java
+++ b/android/packages/apps/Launcher3/src/com/android/launcher3/config/BaseFlags.java
@@ -68,7 +68,7 @@ abstract class BaseFlags {
     public static final boolean LAUNCHER3_PROMISE_APPS_IN_ALL_APPS = false;

     // Enable moving the QSB on the 0th screen of the workspace
-    public static final boolean QSB_ON_FIRST_SCREEN = true;
+    public static final boolean QSB_ON_FIRST_SCREEN = false;

     public static final TogglableFlag EXAMPLE_FLAG = new TogglableFlag("EXAMPLE_FLAG", true,
             "An example flag that doesn't do anything. Useful for testing");

默认语言

persist.sys.locale 属性

device/softwinner/apollo/apollo_p2.mk
	PRODUCT_PROPERTY_OVERRIDES += \
		persist.sys.locale=zh-CN

persist.sys.country 以及 persist.sys.language 属性

--- a/device/softwinner/apollo/apollo_p2.mk
+++ b/device/softwinner/apollo/apollo_p2.mk
@@ -32,8 +32,8 @@ PRODUCT_PACKAGES += FT618

 PRODUCT_SYSTEM_DEFAULT_PROPERTIES += \
     persist.sys.timezone=Asia/Shanghai \
-    persist.sys.country=US \
-    persist.sys.language=en
+    persist.sys.country=CN \
+    persist.sys.language=zh

PRODUCT_LOCALES 配置

$ vim build/target/product/full_base.mk
	PRODUCT_LOCALES := en_US
选项
描述

en_US

英文

zh_CN

中文

locale 获取优先级 frameworks/base/core/jni/AndroidRuntime.cpp

/*
 * Read the persistent locale. Inspects the following system properties
 * (in order) and returns the first non-empty property in the list :
 *
 * (1) persist.sys.locale
 * (2) persist.sys.language/country/localevar (country and localevar are
 * inspected iff. language is non-empty.
 * (3) ro.product.locale
 * (4) ro.product.locale.language/region
 *
 * Note that we need to inspect persist.sys.language/country/localevar to
 * preserve language settings for devices that are upgrading from Lollipop
 * to M. The same goes for ro.product.locale.language/region as well.
 */
const std::string readLocale()
{
    const std::string locale = GetProperty("persist.sys.locale", "");
    if (!locale.empty()) {
        return locale;
    }

    const std::string language = GetProperty("persist.sys.language", "");
    if (!language.empty()) {
        const std::string country = GetProperty("persist.sys.country", "");
        const std::string variant = GetProperty("persist.sys.localevar", "");

        std::string out = language;
        if (!country.empty()) {
            out = out + "-" + country;
        }

        if (!variant.empty()) {
            out = out + "-" + variant;
        }

        return out;
    }

    const std::string productLocale = GetProperty("ro.product.locale", "");
    if (!productLocale.empty()) {
        return productLocale;
    }

    // If persist.sys.locale and ro.product.locale are missing,
    // construct a locale value from the individual locale components.
    const std::string productLanguage = GetProperty("ro.product.locale.language", "en");
    const std::string productRegion = GetProperty("ro.product.locale.region", "US");

    return productLanguage + "-" + productRegion;
}

内置第三方 APP

比如新增 test.apk

Android.mk

LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE_TAGS := optional
LOCAL_MODULE_CLASS := APPS
LOCAL_MODULE_SUFFIX := $(COMMON_ANDROID_PACKAGE_SUFFIX)
LOCAL_CERTIFICATE := PRESIGNED

LOCAL_ENFORCE_USES_LIBRARIES := false
LOCAL_DEX_PREOPT := false

LOCAL_MODULE := test

LOCAL_SRC_FILES := $(LOCAL_MODULE).apk

include $(BUILD_PREBUILT)

Android.bp

android_app_import {
    name: "test",
    apk: "test.apk",

    //presigned: true,
    certificate: "platform",
    dex_preopt: {
        enabled: true,
    },

    privileged: true,
    //product_specific: true,
    //proprietary: true,
    enforce_uses_libs: false,
}

加入编译

PRODUCT_PACKAGES += \
       test

开机自启动 APP

Launcher方式启动

要让 APP 作为 Launcher 开机自启动,需要在 AndroidManifest.xml 中添加两个 category

<activity android:name=".MainActivity">
    <intent-filter>
		<category android:name="android.intent.category.HOME"/>
		<category android:name="android.intent.category.DEFAULT"/>
	</intent-filter>
</activity>

后台调用方式

通过接收开机广播完成后,启动APP

1、修改增加 APP 的权限以及广播接收 AndroidManifest.xml

<uses-permission android:name="android.permission.START_ACTIVITIES_FROM_BACKGROUND" />
<uses-permission android:name="android.permission.USE_FULL_SCREEN_INTENT" />
<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />

<application
        <receiver
            android:name=".MyReceiver"
            android:enabled="true"
            android:exported="true">
            <intent-filter android:priority="1000">
                <action android:name="android.intent.action.BOOT_COMPLETED"></action>
            </intent-filter>
        </receiver>
</application>

2、增加广播接收 MyReceiver.java

package com.example.myapplication;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.util.Log;

public class MyReceiver extends BroadcastReceiver {
    public MyReceiver() {
    }

    @Override
    public void onReceive(Context context, Intent intent) {
        if (intent.getAction().equals("android.intent.action.BOOT_COMPLETED")) {
            Intent i = new Intent(context, MainActivity.class);
            i.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
            context.startActivity(i);
            Log.i("kickpi", "onReceive: start app !!!");
        }
    }
}

3、预装app 到 /system/priv-app/

  • 方式一,编译预装到源码,参考 [内置第三方APP](# 6. 内置第三方APP)

  • 方式二,push 方式预装

    adb root; adb remount;
    adb push ./app /system/priv-app/

ADB投屏

下载工具网盘路径

5-DevelopmentTools开发工具\ADB Screen Cast 投屏

DPI 配置

系统默认DPI配置

--- a/android/device/softwinner/ceres-c3/ceres_c3.mk
+++ b/android/device/softwinner/ceres-c3/ceres_c3.mk
@@ -256,7 +256,7 @@ PRODUCT_SYSTEM_DEFAULT_PROPERTIES += \
 endif

 PRODUCT_PROPERTY_OVERRIDES += \
-    ro.sf.lcd_density=160
+    ro.sf.lcd_density=120

 #language pack
 PRODUCT_PRODUCT_PROPERTIES  += \

命令行配置DPI

(console)# wm density 120

常见问题

1.安卓系统耳机一直是连接状态

我们喇叭和耳机是同一通路 所以为了喇叭能够直接使用所以把驱动里耳机连接状态默认开启,所以安卓会一直识别有耳机, 要想恢复可以还原以下修改

Last updated 2 days ago

image-20250606165333617
image-20250606165428265
image-20250408175807082
image-20250303103950558
image-20250303104027819
538c0528ac148df300bf0408eada0234
