Android常用系统定制

H618 Android 12.0 为官方 tv 系统，兼容 tv 版本的 APP，安装使用 tablet 或 phone 版本的 APP 可能会存在兼容性问题。

TV 桌面

开启Tablet对应的PRODUCT_PACKAGES

--- a/vendor/aw/homlet/homlet.mk
+++ b/vendor/aw/homlet/homlet.mk
@@ -16,12 +16,12 @@ PRODUCT_PACKAGES += \
     DragonSN  \
     GalleryTV

-#PRODUCT_PACKAGES += \
+PRODUCT_PACKAGES += \
     TvLauncher \
     TvSettings

-PRODUCT_PACKAGES += \
       Launcher3 \
+#PRODUCT_PACKAGES += \
       Launcher3 \
        Settings \
        SystemUI

APK 路径

vendor/aw/homlet/package/TVLauncher

Tablet 桌面

开启Tablet对应的PRODUCT_PACKAGES

--- a/vendor/aw/homlet/homlet.mk
+++ b/vendor/aw/homlet/homlet.mk
@@ -16,12 +16,12 @@ PRODUCT_PACKAGES += \
     DragonSN  \
     GalleryTV

-PRODUCT_PACKAGES += \
+#PRODUCT_PACKAGES += \
     TvLauncher \
     TvSettings

-#PRODUCT_PACKAGES += \
-       Launcher3 \
+PRODUCT_PACKAGES += \
+       Launcher3 \
        Settings \
        SystemUI

APK 路径

packages/apps/Launcher3/

屏幕方向与旋转

ADB命令旋转屏幕

支持使用adb命令进行旋转

// 正常显示
adb shell settings put system user_rotation 0

// 90°
adb shell settings put system user_rotation 1

// 180°
adb shell settings put system user_rotation 2

// 270°
adb shell settings put system user_rotation 3

软件默认修改显示方向

(SDK)$ vim android/device/softwinner/ceres-c3/ceres_c3.mk

PRODUCT_PROPERTY_OVERRIDES += \
    ro.surface_flinger.primary_display_orientation=ORIENTATION_0
    #ro.surface_flinger.primary_display_orientation=ORIENTATION_90
    #ro.surface_flinger.primary_display_orientation=ORIENTATION_270

支持 ORIENTATION_0、ORIENTATION_90、ORIENTATION_180、ORIENTATION_270

示例：修改屏幕默认显示旋转90°

(SDK)$ vim android/device/softwinner/ceres-c3/ceres_c3.mk

PRODUCT_PROPERTY_OVERRIDES += \
- ro.surface_flinger.primary_display_orientation=ORIENTATION_0
+ ro.surface_flinger.primary_display_orientation=ORIENTATION_90

开机LOGO

logo 替换路径

longan/device/config/chips/h618/boot-resource/boot-resource/bootlogo.bmp

开机动画

支持 bootanimation.mp4 以及 bootanimation.zip 两种文件格式的开机动画

已知问题：mp4格式开机动画系统第一次上电启动会显示安卓开机动画

两种文件同时存在播放 mp4 优先级比 zip 高，具体优先级见 frameworks/base/cmds/bootanimation/BootAnimation.cpp

第一步，存放动画文件（zip 或 mp4 格式）

device/softwinner/apollo/common/media/bootanimation/bootanimation.zip
device/softwinner/apollo/common/media/bootanimation/bootanimation.mp4

第二步，修改编译配置

bootanimation.zip 格式

SDK$ vim device/softwinner/apollo/common/media/config.mk
PRODUCT_COPY_FILES += \
-		$(BOOTANIMATION_CONFIG_PATH)/bootanimation.mp4:system/media/bootanimation.mp4
+     	$(BOOTANIMATION_CONFIG_PATH)/bootanimation.zip:system/media/bootanimation.zip

bootanimation.mp4 格式

SDK$ vim device/softwinner/apollo/common/media/config.mk
PRODUCT_COPY_FILES += \
-		$(BOOTANIMATION_CONFIG_PATH)/bootanimation.zip:system/media/bootanimation.zip
+    	$(BOOTANIMATION_CONFIG_PATH)/bootanimation.mp4:system/media/bootanimation.mp4

开机启动APP

Android系统定制/Android开机启动APP

默认语言

persist.sys.locale 属性

$ vim device/softwinner/apollo/apollo_p2.mk
	PRODUCT_PROPERTY_OVERRIDES += \
		persist.sys.locale=zh-CN

persist.sys.country 以及 persist.sys.language 属性

--- a/device/softwinner/apollo/apollo_p2.mk
+++ b/device/softwinner/apollo/apollo_p2.mk
@@ -32,8 +32,8 @@ PRODUCT_PACKAGES += FT618

 PRODUCT_SYSTEM_DEFAULT_PROPERTIES += \
     persist.sys.timezone=Asia/Shanghai \
-    persist.sys.country=US \
-    persist.sys.language=en
+    persist.sys.country=CN \
+    persist.sys.language=zh

支持语音选项

选项

描述

en_US

英文

zh_CN

中文

locale 获取优先级 frameworks/base/core/jni/AndroidRuntime.cpp

/*
 * Read the persistent locale. Inspects the following system properties
 * (in order) and returns the first non-empty property in the list :
 *
 * (1) persist.sys.locale
 * (2) persist.sys.language/country/localevar (country and localevar are
 * inspected iff. language is non-empty.
 * (3) ro.product.locale
 * (4) ro.product.locale.language/region
 *
 * Note that we need to inspect persist.sys.language/country/localevar to
 * preserve language settings for devices that are upgrading from Lollipop
 * to M. The same goes for ro.product.locale.language/region as well.
 */
const std::string readLocale()
{
    const std::string locale = GetProperty("persist.sys.locale", "");
    if (!locale.empty()) {
        return locale;
    }

    const std::string language = GetProperty("persist.sys.language", "");
    if (!language.empty()) {
        const std::string country = GetProperty("persist.sys.country", "");
        const std::string variant = GetProperty("persist.sys.localevar", "");

        std::string out = language;
        if (!country.empty()) {
            out = out + "-" + country;
        }

        if (!variant.empty()) {
            out = out + "-" + variant;
        }

        return out;
    }

    const std::string productLocale = GetProperty("ro.product.locale", "");
    if (!productLocale.empty()) {
        return productLocale;
    }

    // If persist.sys.locale and ro.product.locale are missing,
    // construct a locale value from the individual locale components.
    const std::string productLanguage = GetProperty("ro.product.locale.language", "en");
    const std::string productRegion = GetProperty("ro.product.locale.region", "US");

    return productLanguage + "-" + productRegion;
}

预装APP

示例：新增 test.apk

第一步，新增目录 testapk 在 h618-android12.0\vendor\aw\public\prebuild\ 下。

第二步，存放 test.apk 和 Android.mk（或Android.bp）文件；

$ ls vendor/aw/public/prebuild/testapk
test.apk
Android.mk (Android.bp)

Android.mk

LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)

LOCAL_MODULE_TAGS := optional
LOCAL_MODULE_CLASS := APPS
LOCAL_MODULE_SUFFIX := $(COMMON_ANDROID_PACKAGE_SUFFIX)

LOCAL_CERTIFICATE := PRESIGNED

LOCAL_ENFORCE_USES_LIBRARIES := false
LOCAL_DEX_PREOPT := false

LOCAL_MODULE := test

LOCAL_SRC_FILES := $(LOCAL_MODULE).apk

include $(BUILD_PREBUILT)

LOCAL_CERTIFICATE 支持 testkey、platform（系统签名）、shared、media、PRESIGNED（保留原签名）
LOCAL_MODULE 模块名称
LOCAL_SRC_FILES 模块源码路径

Android.bp

android_app_import {
    name: "test",
    apk: "test.apk",

    presigned: true,
    //certificate: "platform",
    dex_preopt: {
        enabled: true,
    },

    privileged: true,
    //product_specific: true,
    //proprietary: true,
    enforce_uses_libs: false,
}

name 模块名称
apk 模块源码路径

第三步，添加模块编译（对应模块名称）

$ vim /vendor/aw/homlet/homlet.mk
+ PRODUCT_PACKAGES += \
+       test

APK签名

如果需要给APK签名，查看 Android_Apk_Signing 文档。

kickpi-book/common/en/android/Android_Apk_Signing.md
kickpi-book/common/zh/android/Android_Apk_Signing.md

HDMI TX

hdmi tx 属性结点

# ls /sys/class/hdmi/hdmi/attr
avmute          dvi_mode   hdcp_enable  hpd_mask   phy_write  scdc_write
cec_dump        edid       hdcp_status  hpi_read   read       set_ddc
cec_enable      edid_test  hdcp_type    hpi_write  reg_dump   write
cec_simulation  esm_dump   hdmi_sink    phy_power  rxsense
debug           hdcp_dump  hdmi_source  phy_read   scdc_read

芯片序列号

芯片序列号可作为唯一识别ID使用，方法参考全志H芯片序列号的获取方法_全志 cpu id-CSDN博客

ADB 功能

adb连接

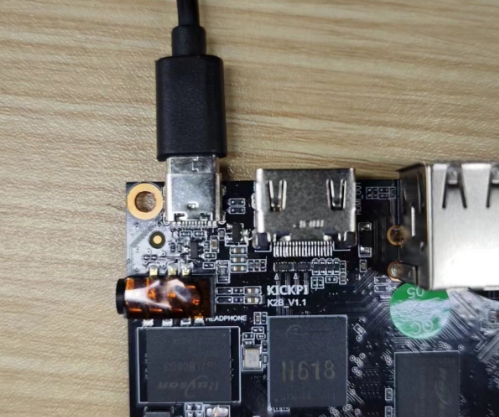

板卡使用type-c线连接电脑，等板卡蓝灯闪烁时查看系统设备管理器是否识到是安卓设备，如果识别到的设备如图所示则需手动安装驱动

手动安装驱动

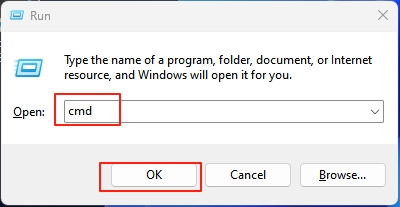

win键+R打开“运行” 输入cmd打开命令行

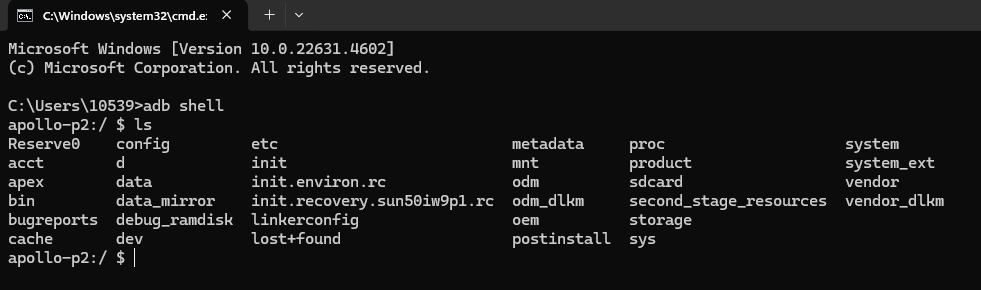

命令行中输入adb shell即可连接

系统若没有adb命令支持可自行参考安装Windows 10 安装 ADB (Android Debug Bridge，Android 调试桥)-CSDN博客

adb offline 问题

$ adb devices
List of devices attached
6c00107150d147e1d52     offline

reconnect 即可

$ adb reconnect
reconnecting 6c00107150d147e1d52 [offline]

网络ADB

网口ADB需要先adb启动5555端口服务后

PS C:\Users\16708\Desktop> adb tcpip 5555
PS C:\Users\16708\Desktop> adb connect 192.168.77.170
connected to 192.168.77.170:5555
PS C:\Users\16708\Desktop> adb devices
List of devices attached
7c001075a313c7c1c12     device
192.168.77.170:5555     device

PS C:\Users\16708\Desktop> adb -s 192.168.77.170:5555 shell
apollo-p2:/ $ su

开机默认启动5555端口

需要通过USB adb操作

 adb root
 adb remount
 adb pull /system/build.prop
 //在build.prop中加入
 //添加这一行
 service.adb.tcp.port=5555
 //替换进入
 adb push .\build.prop /system/build.prop
 adb reboot

ADB投屏

下载工具网盘路径

h618_data\5-DevelopmentTools开发工具\ADB Screen Cast 投屏

常见问题

APP特殊权限问题

若APP为特殊应用（system-app 或 priv-app），如果没有相关权限，会出现系统无法起来问题，需要抓取 APP 相关 log 日志

# logcat | grep com.example.myapplication3
09-14 10:36:06.662  3826  3826 W PackageManager: Privileged permission android.permission.INSTALL_PACKAGES for package com.example.myapplication3 (/system/priv-app/LauncherJingWei) not in privapp-permissions allowlist
09-14 10:36:08.437  3826  3826 W PackageManager: Privileged permission android.permission.INSTALL_PACKAGES for package com.example.myapplication3 (/system/priv-app/LauncherJingWei) not in privapp-permissions allowlist

com.example.myapplication3 为（Androidapk的包名）
android.permission.INSTALL_PACKAGES 为预装APP缺少的权限

方式一

修改源码，根据 log 中的 android.permission.INSTALL_PACKAGES 报错添加对应 APP 的权限允许，其他报错类似：

--- a/frameworks/base/data/etc/privapp-permissions-platform.xml
+++ b/frameworks/base/data/etc/privapp-permissions-platform.xml
@@ -550,4 +550,8 @@ applications that come with the platform
     <privapp-permissions package="com.android.calllogbackup">
         <permission name="com.android.voicemail.permission.READ_VOICEMAIL"/>
     </privapp-permissions>
+
+    <privapp-permissions package="com.example.myapplication3">
+        <permission name="android.permission.INSTALL_PACKAGES"/>
+    </privapp-permissions>

方式二

修改主板上的 xml 文件

/etc/permissions/privapp-permissions-platform.xml
