05-KICKPI-K8_Hardware_Introduction
Last updated
Last updated

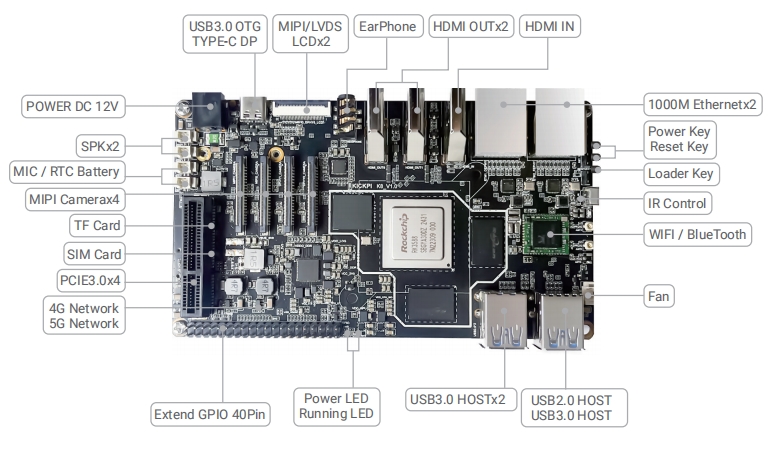

The display interfaces that the K8 main board can connect to are: two MIPI/LVDS interfaces (front - flip FPC interface, back - pull - out FPC interface), two HDMI OUT interfaces (HDMI - A), and 1 HDMI IN interface (HDMI - A).
MIPI - DSI
The MIPI screens that K8 is default - adapted to:
MIPI Panel Model
Diagonal Size
Resolution
AT101DS40I
10.1 - inch
800x1280
MX101BA1340
10.1 - inch
800x1280
MX080B2140
8.0 - inch
800x1280
F050008M01
5.0 - inch
720x1280
